BFL2x14, HFL5x14, HFL6x14 - IP Control via SICP

BFL2x14, HFL5x14, HFL6x14 - IP Control via SICP

This article is applicable for:
BFL2x14, HFL5x14, HFL6x14.

SICP Protocol over IP for the model above is only supported on the TV FW R205.001.099.000 version onwards

SICP Protocol over IP to change the source to custom source (like in BDL Models) is only supported on the TV FW R.205.002.023.001 version onwards

To check your TV's FW version, open up the CSM Menu and go to the CMS-2 (page 2) by pressing one of the 2 remote button sequence below.
- press 1,2,3,6,5,4
- press mute, right, left, down, up, ok

If you want to update the TV FW to the latest version, please follow this article

Procedure To Enable SICP on the TV
Open up TV Professional Menu (press Mute, Left, Right, Up, Down, OK on the remote)
Navigate to Advanced->Select TV Control App
  Choose SICP Control (Default port = 5000)
  Choose Custom Input Source app to the desired app (TV FW need to be R.205.002.023.001 onwards)
  Press back
Navigate to Advanced->Power
   Set the following
   - Power On =  standby
   - Standby mode = fast
   - Delay = off
   - Auto delay = 0
Navigate to Wireless and Networks->Settings->Network Configuration, choose Static IP (if the IP Address keeps changing, it'll be challenging to control it via IP)
That's it from the TV side..

From the Controller Side

To connect to the TV using the controller via IP, you need to connect to the TV IP address, port 5000 (default)

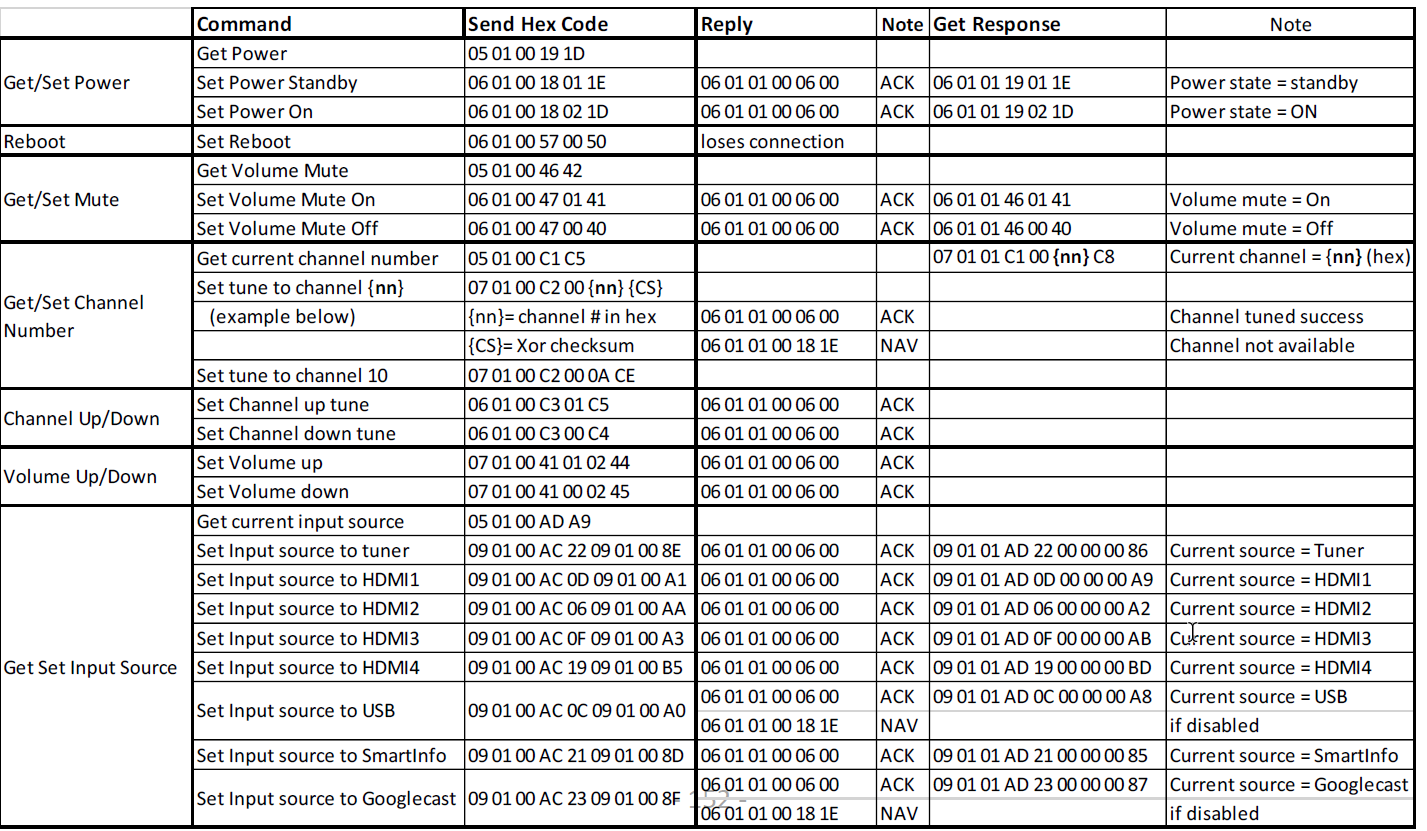

The SICP commands are



Additional SICP Command: (TV FW need to be R.205.002.023.001 onwards)
Set Input Source to Custom: 09 00 00 AC 18 00 01 00 BC
