1. See position of main board in service manual in the link below (page 73, 74, 75, 76) https://westanonline.sharepoint.com/:f:/s/Support/EqtlcpY2eiReq2cZz_lksOgB1LlD1yPxtOuHeM2ifuw-Kg?e=QIO641 2. Important remote sequence: Factory Menu ...

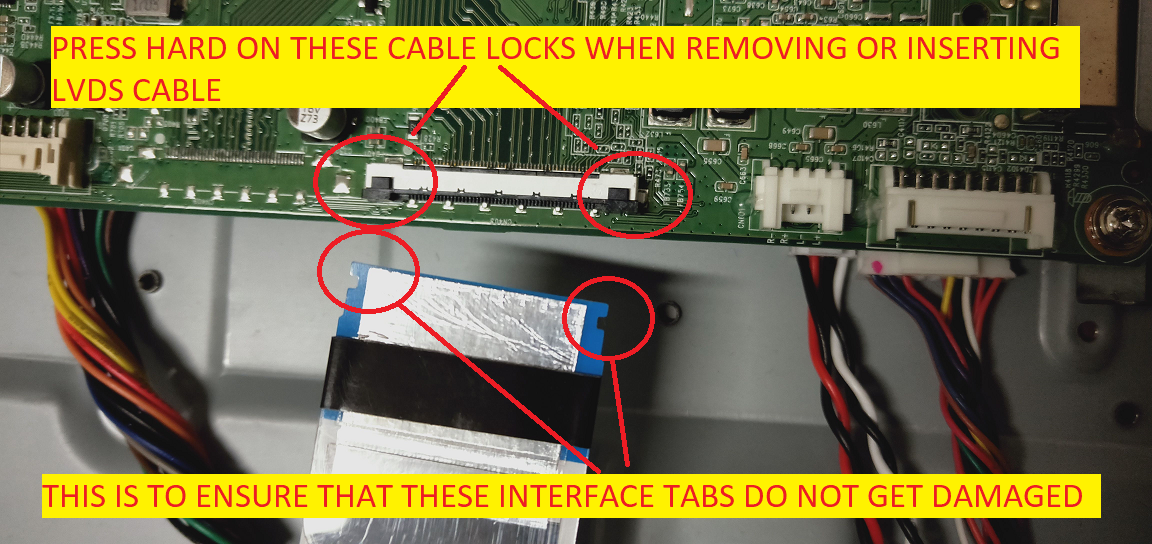

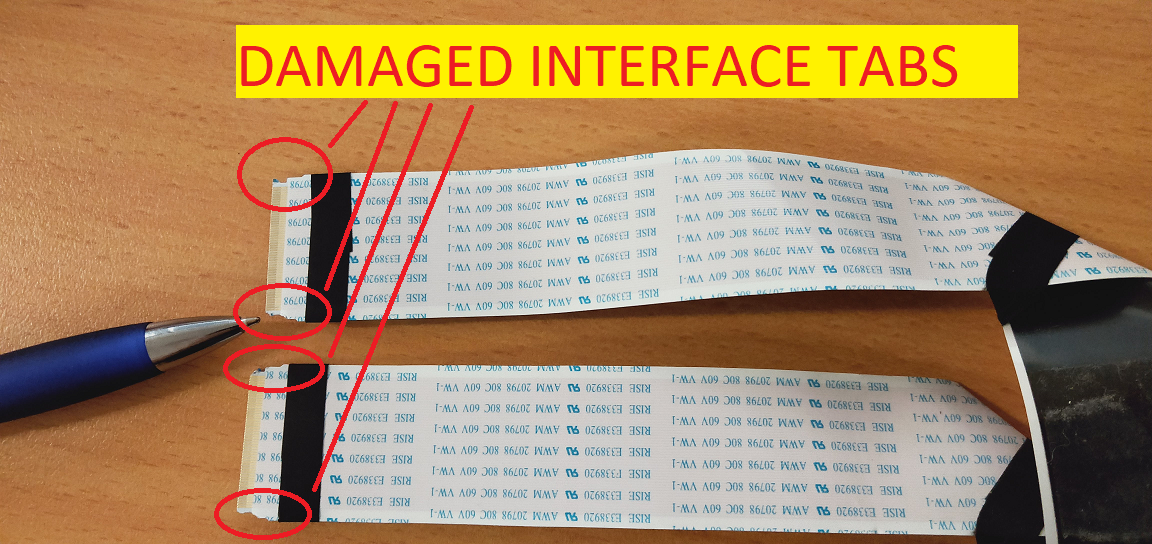

Replace the main board Press the following key sequence on the remote control transmitter: “Menu/Home screen”,“1999”,“Back” button. Do not allow the display to time out between entries while keying the sequence. Common issue1: If the picture is ...
Download the Latest Scaler Software In the root directory of a USB disk (FAT32 formatted) place the PHL_xxBDL4050D.bin files. Pay attention at the bin file, the file name must match the model number of the monitor you need to upgrade. (Copy the .bin ...
Download the latest scaler firmware: In the root directory of a USB disk (formatted in FAT32) place the PHL_xxBDL4051D.bin files. Pay attention at the bin file, the file name must match the model number of the monitor you need to upgrade. (Copy the ...
Checking the Scaler Software Version if it is already running the latest scaler version V1.145) press the home button on the RC, select configuration 2, select Monitor Information Check if the Scaler SW version is V1.145 If it is lower than 1.145, ...
